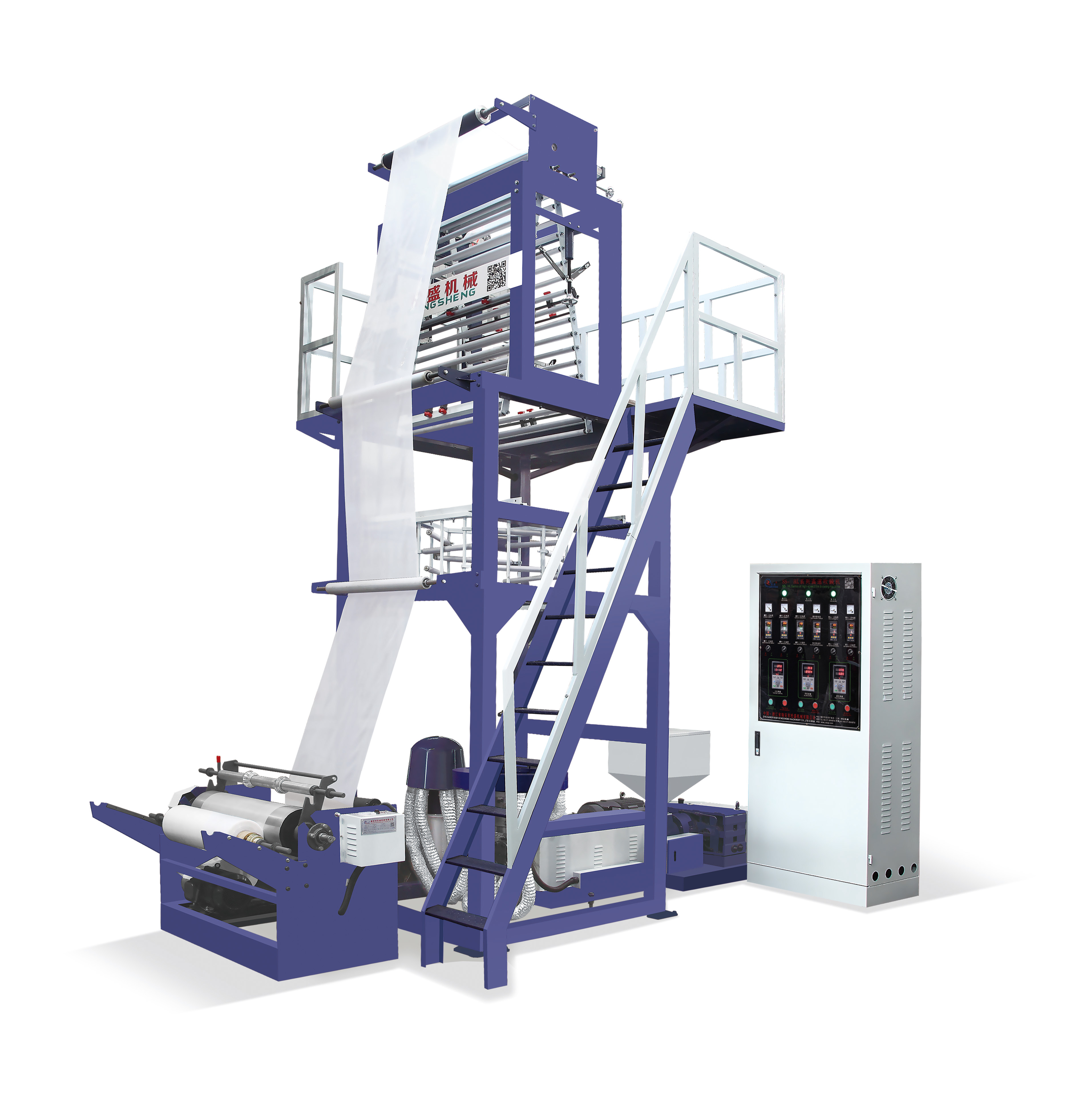

SS-HL Series High Speed High Pressure Film Blowing Machine
SS-HL Series High Speed High Pressure Film Blowing Machine
Use
This blow film machine is suitable for making low-density polyethylene (LDPE), and linear low-density polyethylene (LLDPE) films, which is widely used in the packaging of household and industrial products such as food, clothing, textiles, and daily necessities. Also machine can make pearlescent film and biodegradable film through different raw material formulas. This machine is currently the preferred machinery with high cost-effectiveness in the market.
SS-LDHL600MM
SS-LDHL800MM
SS-LDHL1000MM
SS-LDHL1200MM
薄膜寬度Film Width
100-600mm
200-800mm
300-1000mm
400-1200mm
單層薄膜厚度
One Layer Film Thickness
0.01-0.1mm
0.01-0.1mm
0.01-0.1mm
0.01-0.1mm
最大產量Max Output
45-50KG/H
50-60KG/H
80-90KG/H
90-100KG/H
螺桿直徑Screw Dia
Φ45mm(metallic)合金
Φ50mm(metallic)合金
Φ60mm(metallic)合金
Φ65mm(metallic)合金
螺桿長徑比Screw Length Ratio
30:1
30:1
30:1
30:1
螺桿轉速Screw Speed
10-150rpm(high speed)
10-150rpm(high speed)
10-150rpm(high speed)
10-150rpm(high speed)
冷卻風機Cooling Fan
250W ×2
250W × 2
370W ×3
370W ×3
主電機Main motor
15KW with inverter
18.5KW with inverter
30KW with inverter
37KW with inverter
齒輪箱Gear Box
146
173
200
200
鼓風機Blower
2.2KW
3.0KW
4.0KW
5.5KW
模頭Die Head
LDΦ120mm(Fix die)
LDΦ150mm(Fix die)
LDΦ220mm(Fix die)
LDΦ250mm (Fix die)
風環 Air Ring
Φ700(double air lip)雙風口
Φ800(double air lip)雙風口
Φ1000(double air lip)雙風口
Φ1000(double air lip)雙風口
電壓Machine Voltage
380V 50HZ/220V 60HZ
(can be customizable)
380V 50HZ/220V 60HZ
(can be customizable)
380V 50HZ/220V 60HZ
(can be customizable)
380V 50HZ/220V 60HZ
(can be customizable)
總功率Total Power
35KW
40KW
55KW
65KW
機器重量Machine weight
2.5T
3.0T
3.5T
6.0T
機器尺寸Machine Dimension
L4.8*W2.2*H4.5m
L5.0*W2.4*H5.2m
L5.5*W2.6*H5.5m
L5.5*W2.8*H6.2mm
SS-LDHL1500MM
薄膜寬度Film Width
500-1500mm
單層薄膜厚度
One Layer Film Thickness
0.01-0.1mm
最大產量Max Output
100-120KG/H
螺桿直徑Screw Dia
Φ75mm(metallic)合金
螺桿長徑比Screw Length Ratio
30:1
螺桿轉速Screw Speed
10-140rpm(high speed)
冷卻風機Cooling Fan
370W ×3
主電機Main motor
55KW with inverter
齒輪箱Gear Box
225
鼓風機Blower
7.5KW
模頭Die Head
LDΦ350mm
風環 Air Ring
Φ1200(double air lip)雙風口
電壓Machine Voltage
380V 50HZ/220V 60HZ
(can be customizable)
總功率Total Power
95KW
機器重量Machine weight
8.0T
機器尺寸Machine Dimension
L6.8*W2.6*H6.50
