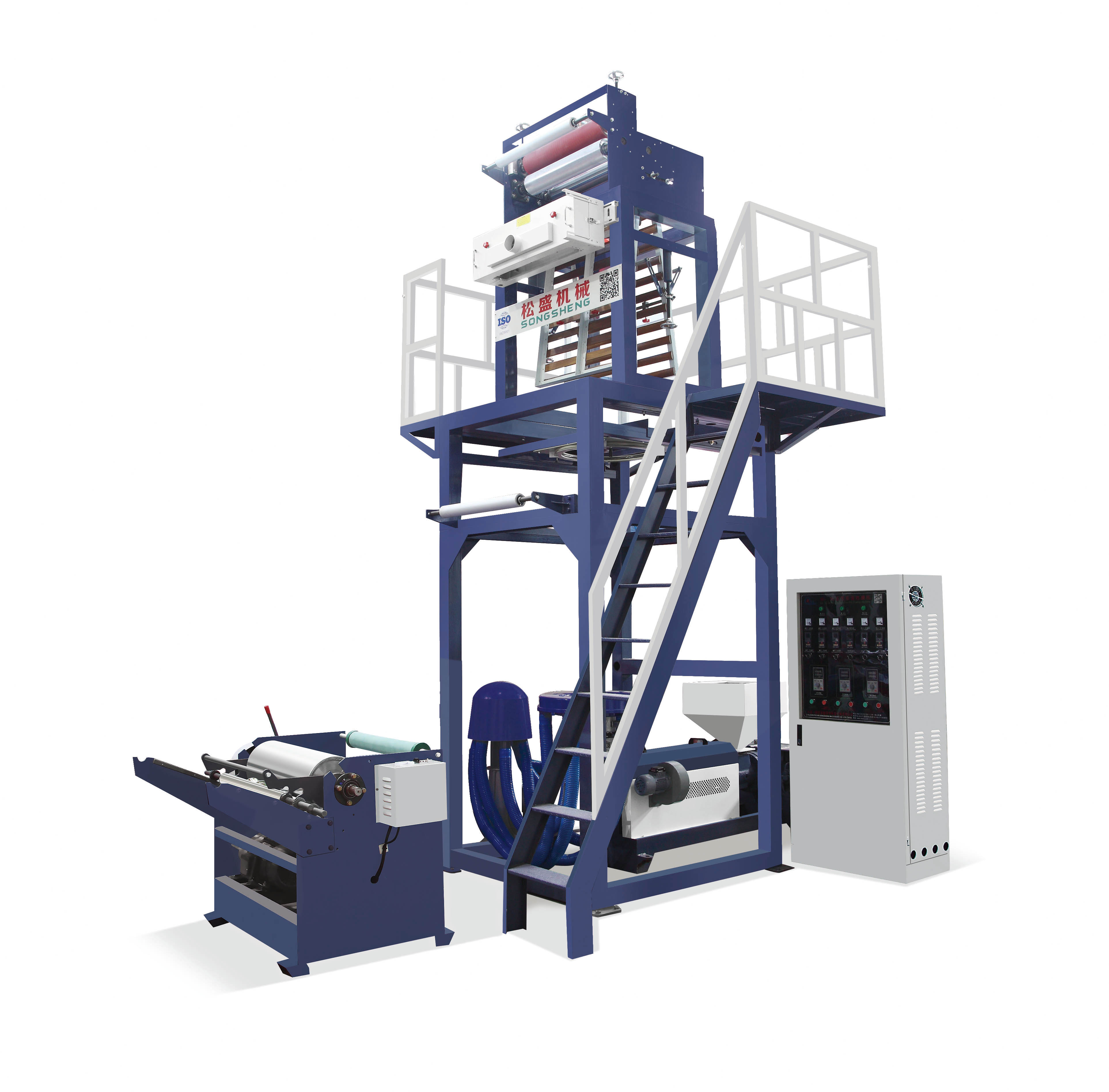

SS-HL 系列低壓高速吹膜機
SS-HL 系列低壓高速吹膜機
用途
高低壓吹膜機組適用于吹制高密度聚乙烯(HDPE)，廣泛應用于食品、服裝、紡織品、日用品等民用品和工業品的包裝。經過不同的原料配方可以生產珠光膜、降解膜。該機是目前市場上高性價比的首選機械。
|
|
SS-HDHL600MM |
SS-HDHL800MM |
SS-HDHL1000MM |
SS-HDHL1200MM |
|
薄膜寬度Film Width |
100-600mm |
200-800mm |
300-1000mm |
400-1200mm |
|
單層薄膜厚度 One Layer Film Thickness |
0.005-0.045mm |
0.005-0.045mm |
0.005-0.045mm |
0.005-0.045mm |
|
最大產量Max Output |
45-50KG/H |
50-60KG/H |
70-80KG/H |
90-100KG/H |
|
螺桿直徑Screw Dia |
Φ45mm(metallic)合金 |
Φ50mm(metallic)合金 |
Φ60mm(metallic)合金 |
Φ65mm(metallic)合金 |
|
螺桿長徑比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺桿轉速Screw Speed |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
|
冷卻風機Cooling Fan |
250W × 1 |
250W × 2 |
370W ×3 |
370W ×3 |
|
主電機Main motor |
15KW with inverter |
18.5KW with inverter |
37KW with inverter |
37KW with inverter |
|
齒輪箱Gear Box |
146 |
173 |
200 |
200 |
|
鼓風機Blower |
2.2KW |
3.0KW |
4.0KW |
5.5KW |
|
模頭Die Head |
HDΦ50mm |
HDΦ80mm |
HDΦ100mm |
HDΦ120mm |
|
風環 Air Ring |
Φ700(double air lip)雙風口 |
Φ700(double air lip)雙風口 |
Φ800(double air lip)雙風口 |
Φ800(double air lip)雙風口 |
|
電壓Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
總功率Total Power |
35KW |
40KW |
55KW |
65KW |
|
機器重量Machine weight |
2.5T |
3.0T |
3.5T |
6.0T |
|
機器尺寸Machine Dimension |
L4.8*W2.2*H4.5m |
L5.0*W2.4*H4.5m |
L5.5*W2.6*H5.2m |
L5.5*W2.8*H6.2mm |
|
|
SS-HDHL1500MM |
|
薄膜寬度Film Width |
500-1500mm |
|
單層薄膜厚度 One Layer Film Thickness |
0.005-0.045mm |
|
最大產量Max Output |
120-140KG/H |
|
螺桿直徑Screw Dia |
Φ75mm(metallic)合金 |
|
螺桿長徑比Screw Length Ratio |
30:1 |
|
螺桿轉速Screw Speed |
10-140rpm(high speed) |
|
冷卻風機Cooling Fan |
370W ×3 |
|
主電機Main motor |
55KW with inverter |
|
齒輪箱Gear Box |
225 |
|
鼓風機Blower |
7.5KW |
|
模頭Die Head |
HDΦ150mm |
|
風環 Air Ring |
Φ800(double air lip)雙風口 |
|
電壓Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
|
總功率Total Power |
95KW |
|
機器重量Machine weight |
8.0T |
|
機器尺寸Machine Dimension |
L6.8*W2.6*H6.50 |
